perforated sheet metal is made of different materials with different shapes of holes to suit different needs.
material: most of the raw materials are: stainless steel plate, low carbon steel plate, galvanized board, PVC board, cold rolled coil, hot rolled plate, aluminum plate copper plate and so on.
Types of stainless steel holes: pattern punching net, forming punching net, heavy punching net, ultra-thin punching net, micro punching net, wire cutting punching net, laser punching net, etc.
Stainless steel hole mesh pass specification
The main specifications are square hole, square hole, diamond hole, round hole, round hole, hexagonal hole, cross hole, triangular hole, long waist hole, mui hole, fish scale hole, pattern hole, eight mesh, herringbone hole, five-pointed star hole, irregular hole, drum hole, shaped hole, louver hole and so on.
stainless steel punch screen plate
1. Coil thickness 0.2mm-1mm, length 20m
2. The pore size of 1.5 mm to 10 mm
3. Thickness of the sheet is 0.2mm-20mm;Width * length ≤1.5m*5m
4. The pore size of 0.5 mm - 200 mm
Punching net application: widely used in chemical machinery, pharmaceutical equipment, food and beverage machinery, cigarette machinery, harvester, dry washing machine, ironing table, noise-cancelling equipment, refrigeration equipment (central air conditioning) speaker, arts and crafts production, paper, hydraulic accessories, filtration equipment and other industries.
stainless steel punch screen plate with round holes |
| Stainless steel,Plain steel,Galvanized steel,Aluminum,Brass,Copper |
| Round,square,triangle and so on |
| 0.2mx0.8m,0.5mx1m,1mx2m,1mx20m etc. |
| |
| |
Exquisite workmanship of stainless steel punching plate
Superb skills for the creation of stainless steel punching plate laid a solid foundation, stainless steel material with high wear resistance, corrosion resistance and other advantages is the screen plate punching material commonly used.Stainless steel punching plate can not be made without good punching and cutting technology.
Perforated Sheets Technical Details:
Our advanced and expert tooling department allows us to customize tooling to your exact requirements.
1. Perforated patterns are available in one-hole size or a variety of different hole sizes and shapes
2. Bespoke patterns and pitches are designed to individual customer’s requests
3. Different Perforated Metal types are also available in flush, embossed (raised)
4. Standard staggered pitch include; 60, 90 and 45-degree orientation
|
|

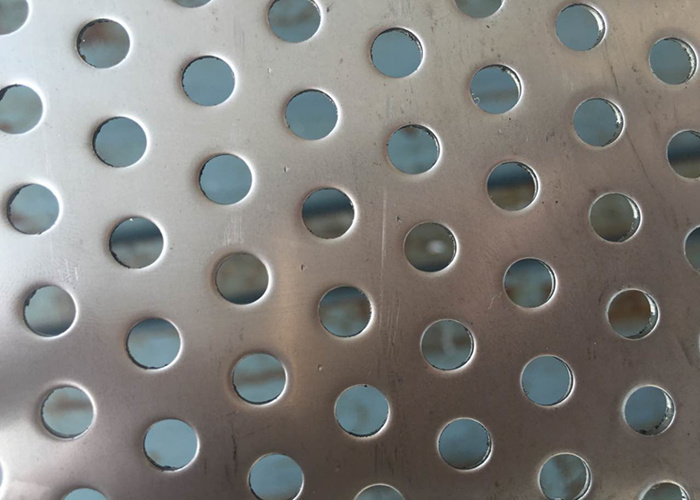

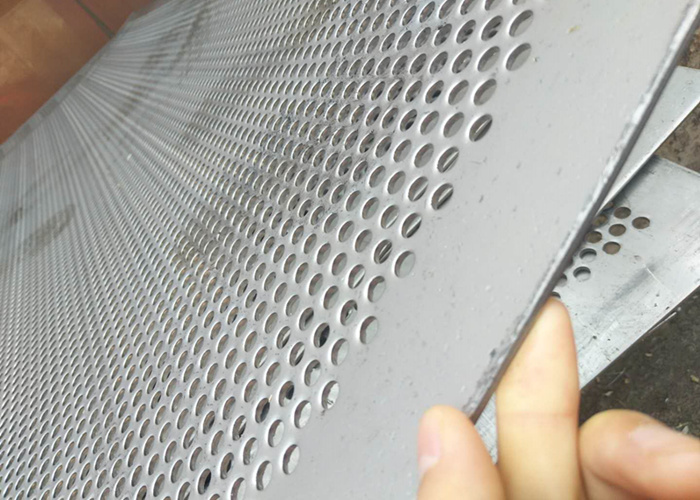

Ultra Thin Stainless Steel Perforated Sheet Metal Mesh Galvanized Images
|
