Edge Protection Barriers Description
Lightweight, versatileEdge Protection fencethat provides hard-mesh coverage with impact-absorbing capacity.Each weld can withstand a force of 500kg. Designed with closed return for greater debris containment, and withreinforced edges to prevent site damage. Guardrails, toeboard and debris mesh in one product.
Edge Protection Barriers Specification
| Wire diameter | 5-8mm |
| Opening size | 50*200mm |
| Panel size | 1100*1700/1100*2400mm/1300*1300mm/1300*2200mm |
| Post diameter/thickness | 48*1.5/2.0mm |
| Surface treatment | Galvanized+powder coated / galvanized+painted /black +powder coated |
| Specifications can be made according to your requirements |
Advantages of Edge Ptotection Barrier
1. Temporary Roof Edge Protection BarriersPontoon Mesh
2. Edge Protection System For Floating Platforms
3. Fall Prevention of Edge Protection Fence
4. Edge Protection Fence for Walls & Shafts
Feature Of Edge Ptotection Barrier
1. Profiled edges for extra strength;
2. Integrated toe-boards for in-built safety;
3. Steel components manufactured from high quality steel with galvanised finish;
4. Barriers can be powder coated in a choice of colours from the RAL range and customised with company logos in order to strengthen a customer´s brand on site.

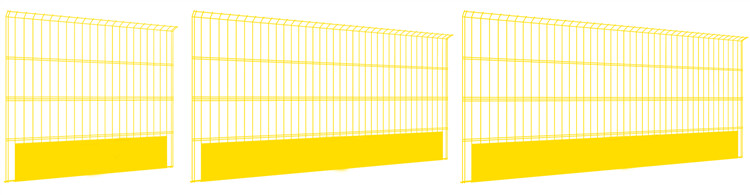

Lightweight, versatileEdge Protection Fence Panelthat provides hard-mesh coverage with impact-absorbing capacity. Each weld can withstand a force of 500kg. Designed with closed return for greater debris containment, and with reinforced edges to prevent site damage. Guardrails, toeboard and debris mesh in one product.
Edge Protection Fence Panelcomply to EN 13374 Class A and incorporate guardrail, toe board and mesh infill in one. This method provides a high level of containment and often enhances the feeling of operative safety.
Type ofEdge Protection Fence Panel |
Item | |
Type | Type 1 | Type 2 | Type 3 |
Weight | 9Kg | 16Kg | 18Kg |
Length | 1325mm | 2285mm | 2585mm |
Height | 1150mm | 1150mm | 1150mm |
Finish | Gaiv. wire+Powder coat |
Material | Metal |
Wire diameter | 4.0mm |
Mesh size | 50X100mm,50X200mm |
Color | Red, yellow, bule, white, Support customization |
Feature
Feature ofEdge Protection Fence Panel
1.Galvanised wire with Powder coat finish to customer’s colour
2.Tested to EN13374 Class A and B withstanding Static and Dynamic loading
3.Close mesh spacing (60mm vertically) with 1.15m overall height
4.Customer’s Logo can be attached on toeboard
