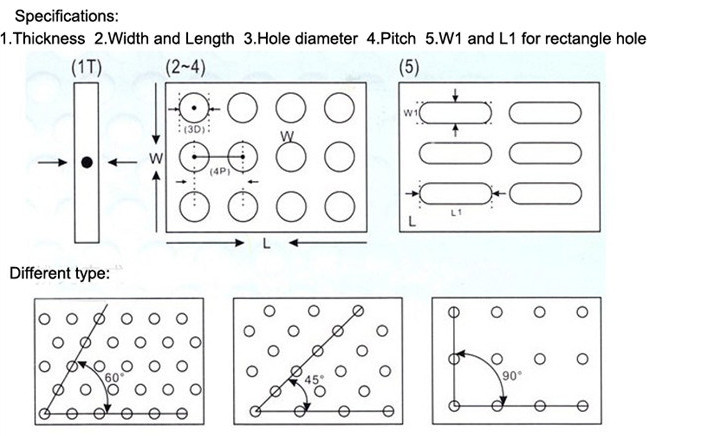

perforated metal sheets Specifications:
hole diameter(size): 0.1mm--200mm;
thickness: 0.1mm--12mm
pitch:> = 0.2mm
plate size :1000x2000mm,1250x2500mm,1220x2440mm,or other
pattern type(Arrangement):45°,60°,straight or custom patterns.
Material:iron, stainless steel plate, stainless steel honeycomb panels, copper, aluminum, galvanized sheet and other sheet metal and other non-metallic
Hole shape: round hole, square hole, slot,triangle hole, convex hole, diamond hole, hexagonal hole,cross hole, or custom patterns, etc.
Value added services:Degreasing(free of oil), PVC Coating(free of scratches), Shear to Size ,or other requirements you want…..

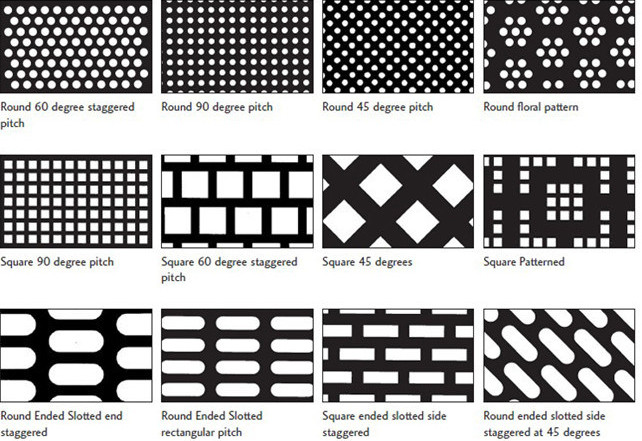

2.Perforate metal sheet: Round perforations, square perforations, slotted perforations, fish scale perforations, hexagonal perforations, cross perforations as well as some other special patterns.
3.Production and stocking: We are professional factory of fiberglass mesh and have strict quality control system to guarantee the quality.Our factory have passed ISO certificate, each production processing have the responsible person and Traceable records

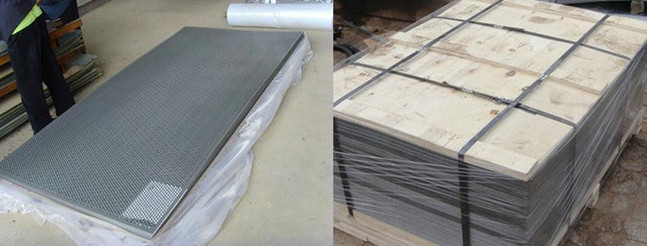

4. Package details: wooden pallets with plastic films.Our packaging can protect the goods against damage during transport. Or we can pack as your requirements.
| Plate material | Thickness of metal | Hole
Dia(mm) | Pitch
(mm) | Sheet
Width(m) | Sheet
Length(m) | Porosity
(%) |
Rolling
plate | 0.2 | 6 | 2 | 1 | 20 | 44 |
| 0.35 | 5 | 4 | 1 | 20 | 24 |
| 0.45 | 6 | 3 | 1 | 20 | 35 |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 |
| 1.5 | 5 | 2 | 1 | 2 | 35.39 |
| 3 | 5 | 16 | 1 | 2 | 19.6 |
| Stainless stee; plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 |
| 1 | 2 | 2 | 1 | 2 | 19.6 |
| 2 | 5 | 16 | 1 | 2 | 19.6 |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 |
| 3 | 4 | 16 | 1 | 2 | 19.6 |
Features:flat surface, smooth, beautiful, durable, has a wide range of uses.
The product is easy to use, since it´s very malleable and can be cut for specific surgical site adaptations, having the capacity to keep the regenerative space intact with the possibility of bone graft vascularization on both sides (periosteum and endosseous).
Applications:Agricultural equipment. Appliances. Architecture. Audio. Automotive. Perforated baking trays. Decorative patterns. Electronic Enclosures. Filtration. HVAC. Medical. Noise control. Store fixtures & displays.Security ceilingsand so on.
|
|
1.2mm Hole Diameter Ss Perforated Sheet Stainless Steel 304 Perforated Punched Metal Mesh Images
|
