SS304 grade stainless steel wire rope mesh wire mesh 7 × 19 type Prevent Suicide
Stainless steel wire rope mesh:
Our stainless steel wire rope mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven
mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope .
The stainless steel wire rope mesh construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.
This mesh has strong tensile strength , high flexibility,high transparence and wide span.
The stainless steel wire rope mesh has unreplacable advantages compared with other mesh products in many aspects
like practicability, security, aesthetic property and durability etc. Its more and more appreciated by garden designers and
architect all over the world.
Stainless steel wire rope meshgoodfeatures show to you:
1. high strength,
2. strong toughness,
3. free-angles curving and fold,
4. easy for transportation and installment.
5. anti-corrosive,resist the rust, can be repeated use.
Stainless steel wire rope mesh widelyapplication:
1. Green Facade - Cable System for Most Climbing Plants
2. Aviary Netting - Lightweight, Durable and Long Lasting

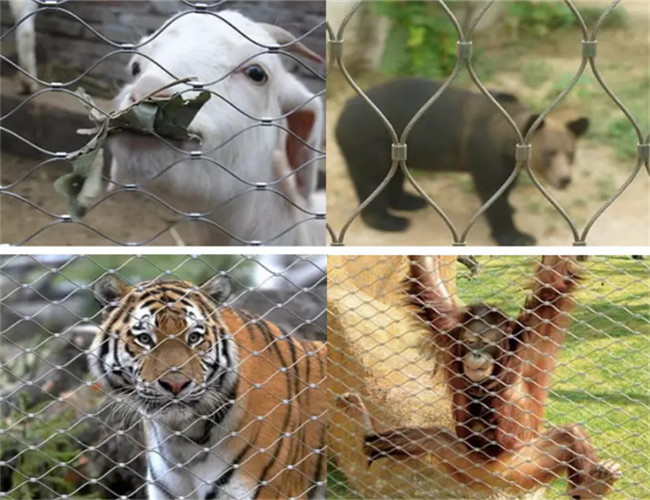

3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Helipad Safety Net - Modular Heliport Webbing
5. Safety Net - Structural Measure to Prevent Suicide
6. Cable Mesh - Excellent Solution to Safety
7. Steel Mesh Balustrade - bridge, stair, balcony, path
Stainless steel wire rope mesh specification:
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force |
| Inch | mm | Inch | mm | KN |
| BR-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| BR-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| BR-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| BR-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| BR-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| BR-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| BR-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| BR-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| BR-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| BR-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| BR-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| BR-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| BR-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| BR-19 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| BR-20 | 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| BR-21 | 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| BR-22 | 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| BR-23 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
| BR-24 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
Stainless steel wire rope mesh:
Stainless steel wire rope mesh also called knotted rope mesh ( or woven rope mesh ) and ferrule rope mesh
Show ourStainless steel wire rope meshfor reference:
|
|
Ss304 Grade Stainless Steel Farm Fence Wire Mesh 7×19 Type Prevent Suicide Images
|
