SS 316 Architectural protective Flexible Stainless Steel Wire Rope Mesh
SS 316 Architectural protective Flexible Stainless Steel Wire Rope Mesh Product Description
Material:stainless steel304, 304L, 316, 316L.
Ferrule material:tinned copper, nickel plated copper, stainless steel.
Surface treatment:silver or black oxide finish.
Structures of wire cable:7 × 7, 7 × 19.
Cable diameter:1.0–5.0 mm.
Diamond sizes:20–200 mm.
Mesh opening angles:20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Connection: ferrule or knotted.
Certification: certified to EN1263-1 for static and dynamic load capacity.
The type of stainless steel rope mesh:

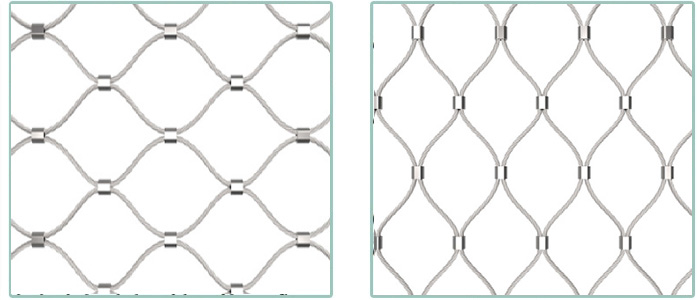

There are two types of flexible wire rope meshes in construction: ferrule type and knotted.
| Flexible Stainless Steel Cable Mesh |
| Type | Knotted cable mesh | Ferrule cable mesh |
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L, etc |
| Cable diameter | 1 ~ 4 mm |
| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) |

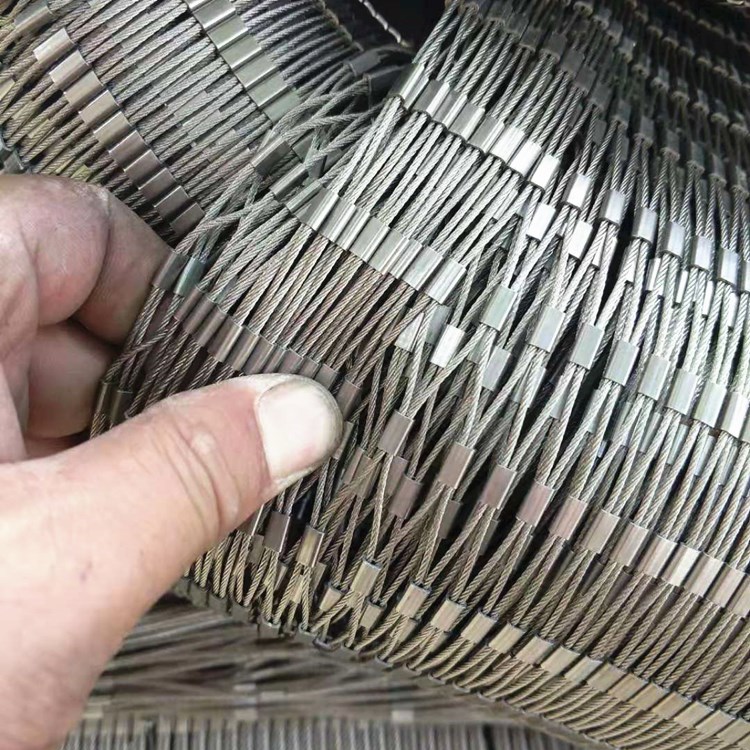

Product Images

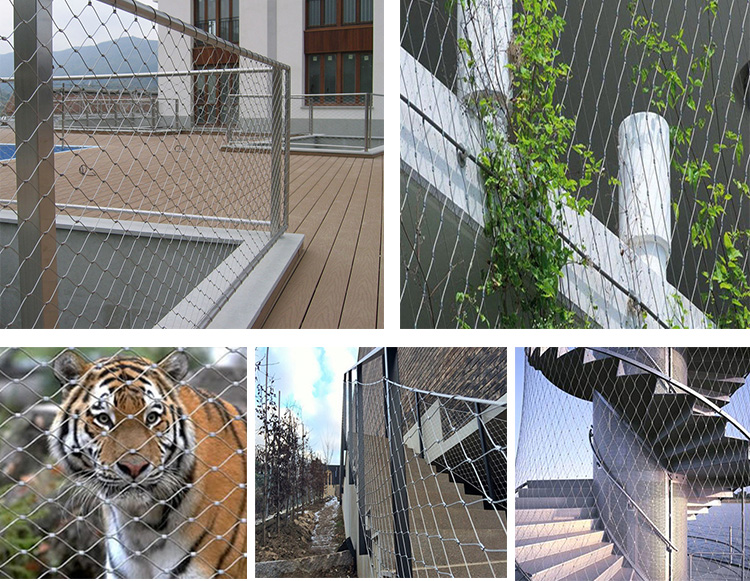

Product Application
1. Green Facade - Cable System for Most Climbing Plants
2. Aviary Netting - Lightweight, Durable and Long Lasting
3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Helipad Safety Net - Modular Heliport Webbing
5. Safety Net - Structural Measure to Prevent Suicide
6. Cable Mesh - Excellent Solution to Safety
7. Steel Mesh Balustrade - bridge, stair, balcony, path
|
|

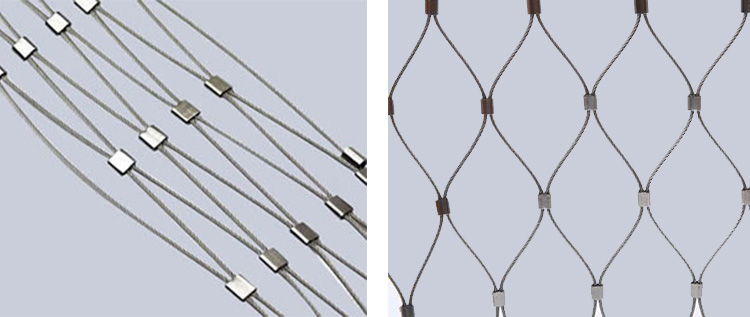

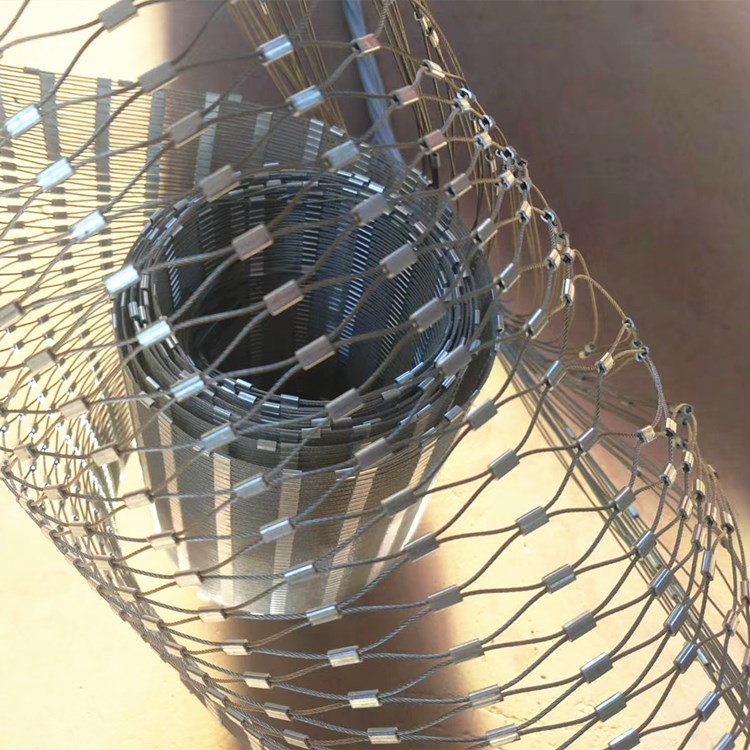

Architectural Protective Flexible Stainless Steel Farm Mesh Fencing Ss316 Images
|
