Security Garden Fence with Stainless Steel 304 316 Wire Rope Mesh
Excellent Flexibility Stainless Steel Wire Rope Mesh ForSecurity Garden Fence
Product Type : Stainless Steel Wire Rope Mesh ;
Material : Stainless Steel ;
Material Grade : SS 304 SS 316
Wire Rope Thickness : 1.5 mm - 6.0 mm ;
Mesh Aperture : wide 50 mm by high 120 mm ;
Mesh Type : Woven;Ferruled
Mesh can be applied in either a vertical or horizontal direction dependent the balustade or railing design ;
1. Shape: There are irregular shape
| triangle |  |
| parallelogram |
|
| Trapezoid, Hexagon etc.
|
2. The main specification:
Stainless steel flexible wire rope mesh adopt ferruled type which is sturdy and unlimited in wide and long ;
This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;
| Flexible Stainless Steel Wire Rope Mesh(Ferrule Type) |
| Item No.s | Cable Diameter | Mesh Opening Size
(W×H) | Normal Break |
| inch | mm | inch | mm | ibs. |
| YT-3212F | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210F | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290F | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3250F | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2510F | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2560F | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2550F | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2060F | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-1680F | 1/16 | 1.6 | 3.15 | 80*80 | 480 |
| YT-1650F | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| Stainless Steel Woven Wire Rope Mesh(Woven Type) |
| Item No.s | Cable Diameter | Mesh Opening Size
(W×H) | Normal Break |
| inch | mm | inch | mm | ibs. |
| YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2510W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2560W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2550W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-1680W | 1/16 | 1.6 | 3.15 | 80*80 | 480 |
| YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
3 . Packing and Delivery:
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
The flexible stainless steel wire cable mesh´s rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.

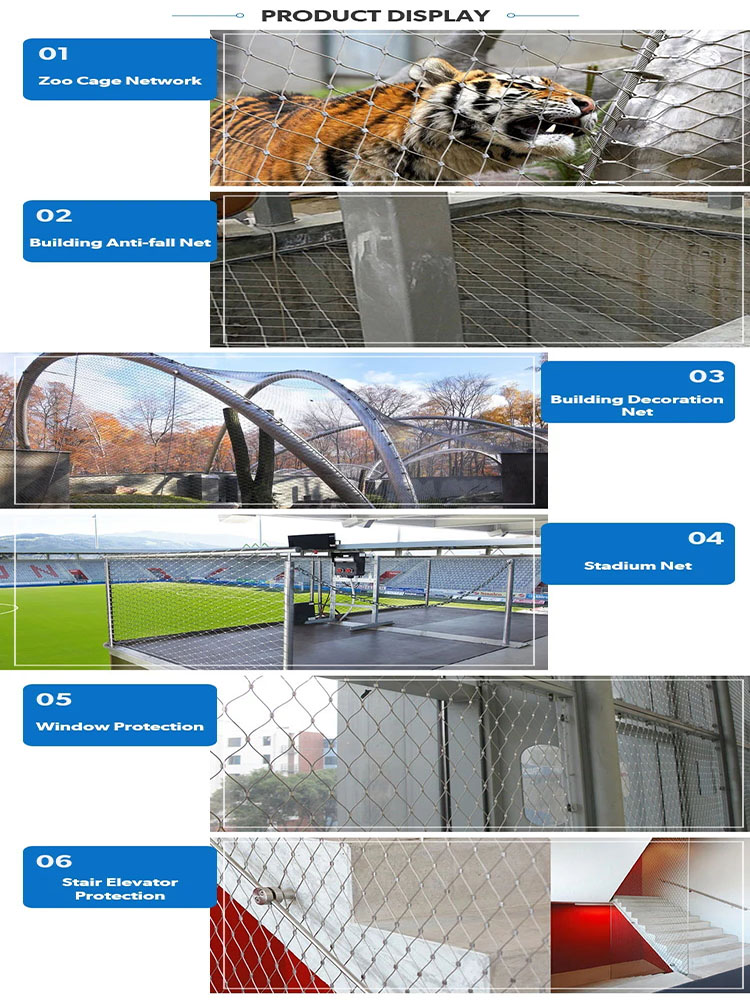

5. Application:It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
6.Stainless Steel Cable Mesh advantages
| 1.The netting is clipped to the cable, |
| 2. The mesh size and diameter can be modified |
| 3. It can be made to customer orders and statically tested – especially suitable for facades |
| 4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment. |
| 5. Anti-corrosive, resist the rust, can be repeated use. |
| 6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI) |
| 7.This product can bear the heavy snow and the gale very much. |
| 8. without toxic material, safety, environmental protection. |
|
|

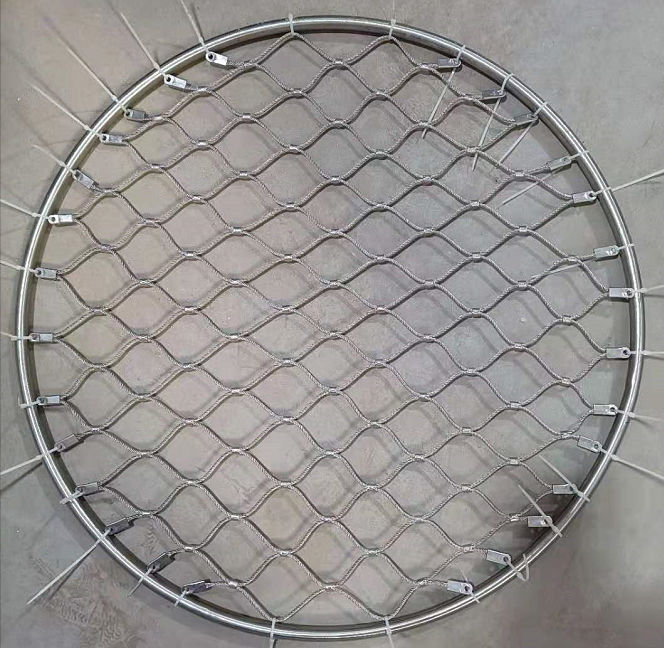

Security Garden Fence Zoo Wire Mesh With Stainless Steel 304 316 Wire Rope Mesh Images
|
